BECKHOFF PRODUCTS

Beckhoff Bundle

Automation Starter Bundle
• CX9240-0215 Embedded PC (pre-licensed TwinCAT XAR)
• EL1008 (8 Digital Inputs)
• EL2008 (8 Digital Outputs)
• EL4374 (2 Analog In and 2 analog out)
• EL9011 — Bus End CapSave vs buying separately — perfect for prototyping, labs, or fast-deploying industrial applications.Launch Pricing: Pre-orders only.
👉 Please contact Adam to reserve your kit.

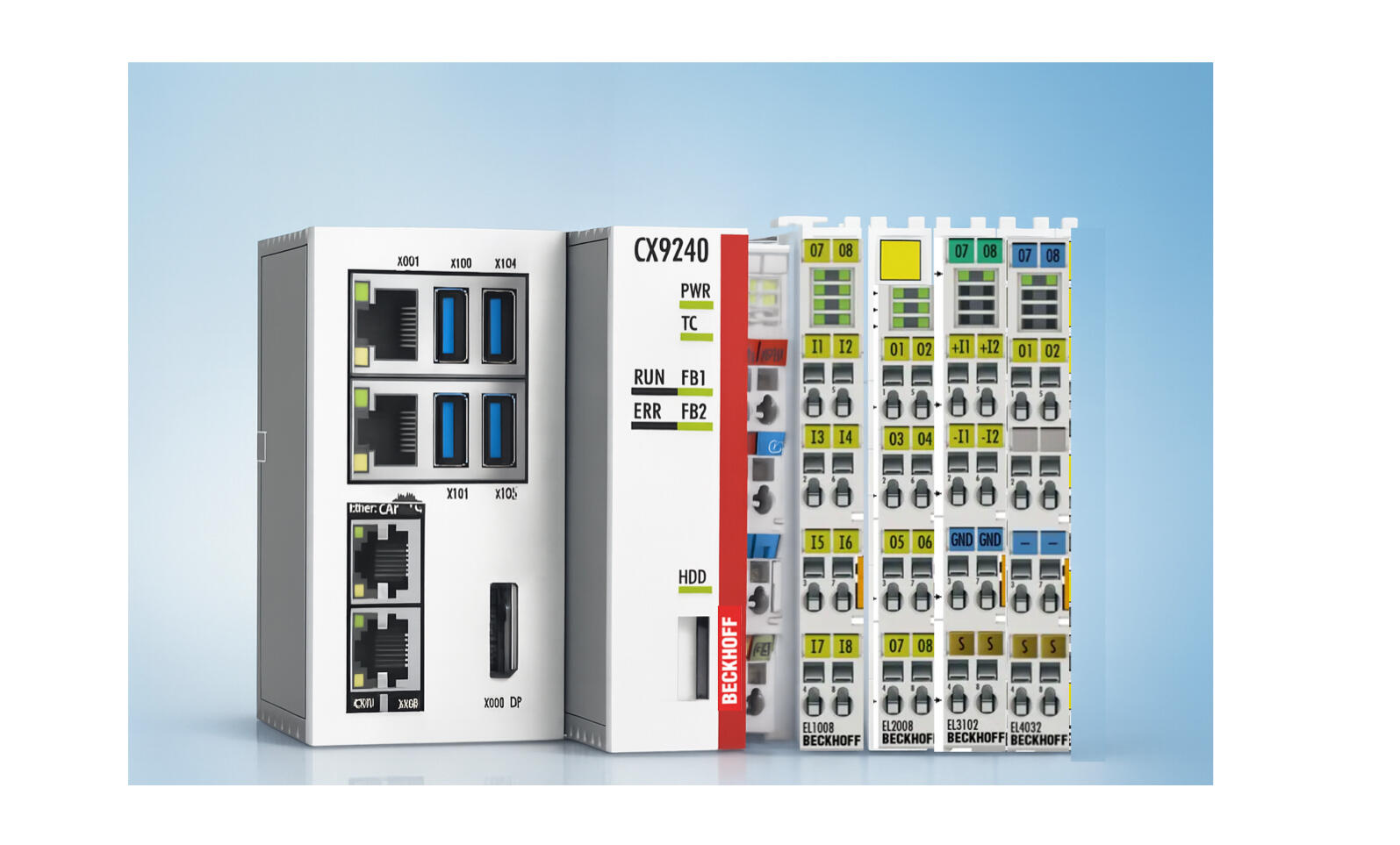

Image for demonstration purposes. Shown with additional I/O cards not included in bundle.

• See Everything → One Page. All Products.

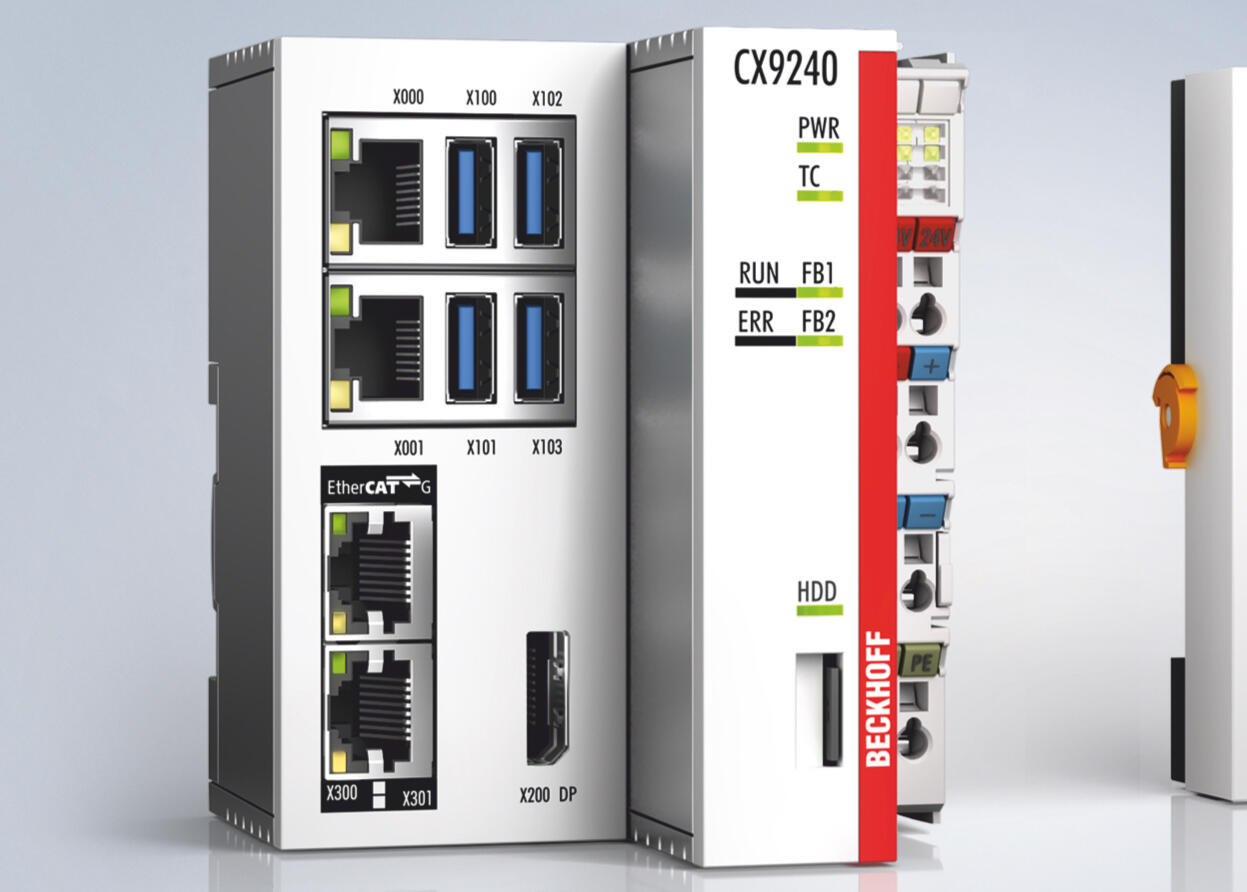

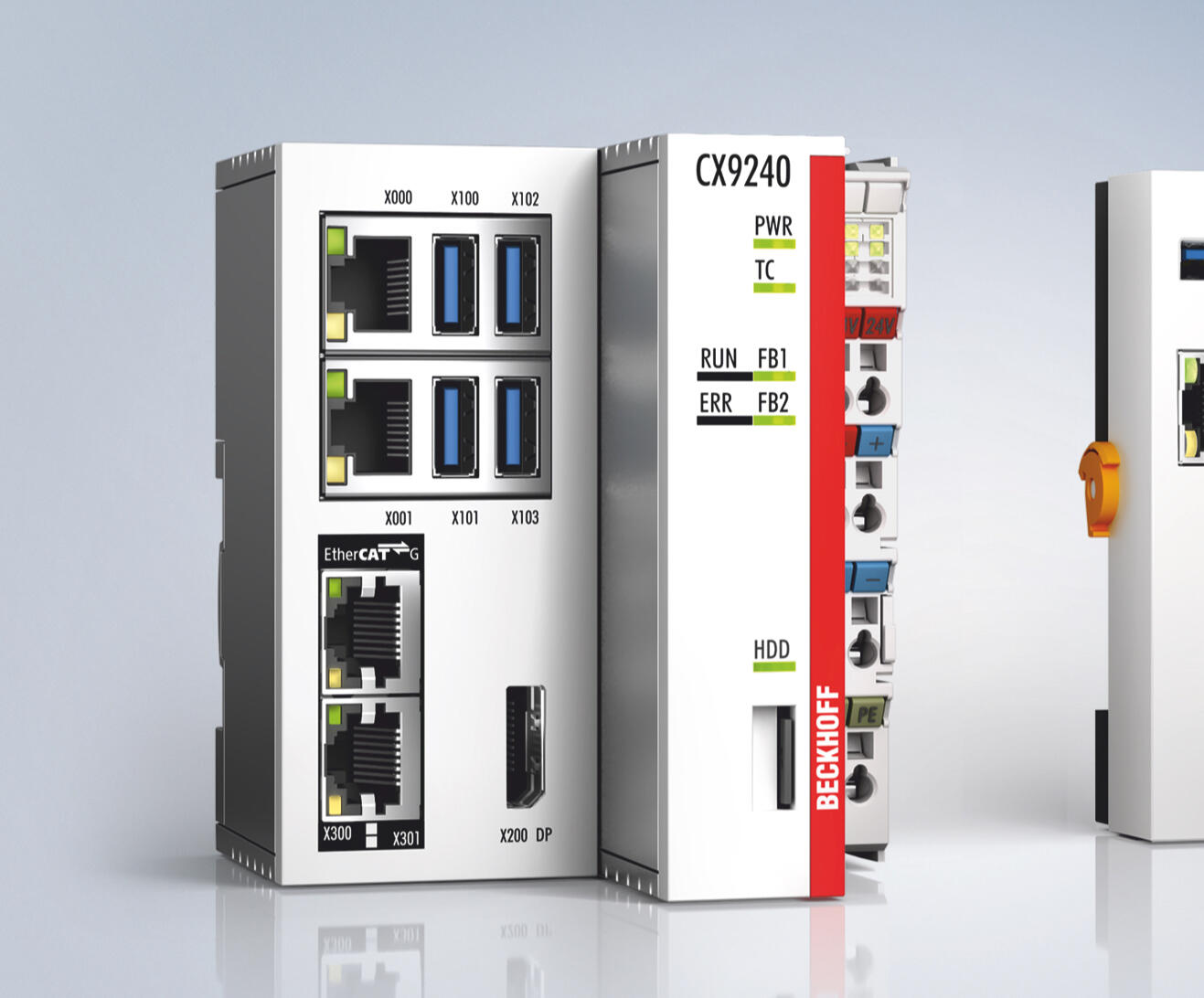

Beckhoff 9240-0215 Embedded PC with EtherCAT Master

A powerful, compact EtherCAT controller with a quad-core ARM CPU, pre-licensed TwinCAT 3 runtime, and seamless I/O expandability. With dual Ethernet ports, USB, and fanless design, the CX9240 is ideal for high-speed control, motion, and machine automation. Ships ready to deploy with full compatibility across Beckhoff’s I/O and software ecosystem.• Robust quad-core PLC with EtherCAT Master
• Pre-installed & licensed TwinCAT XAR Runtime
• 2x Ethernet, 4x USB-A, 1x DVI
💡 Use with your own I/O selection

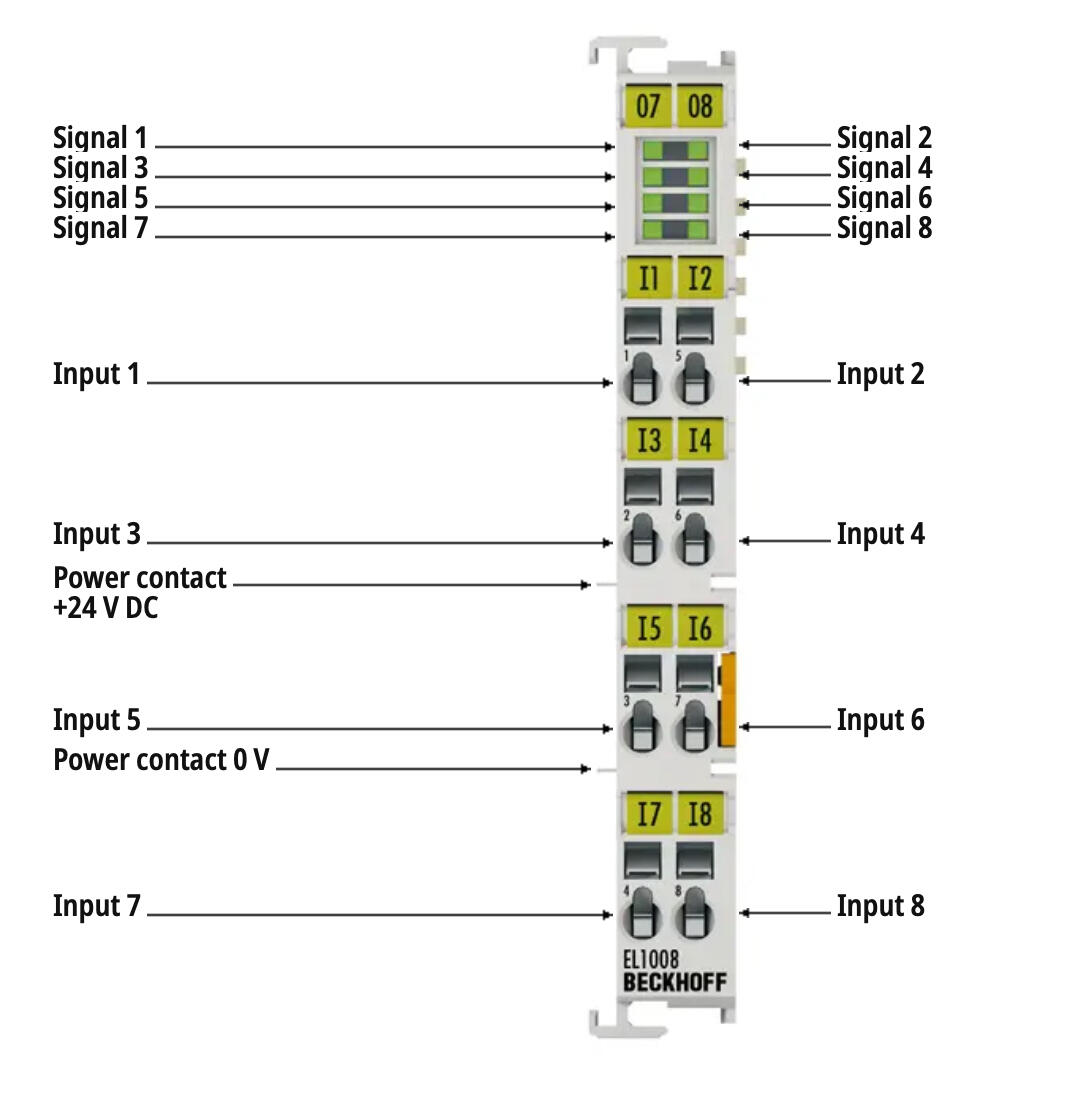

Beckhoff EL1008

The EL1008 is an 8-channel digital input terminal for 24 V DC signals. With a compact footprint, it reads binary signals from sensors and switches with precision. Each channel has its own LED for status indication, enabling rapid troubleshooting and deployment.Features:
• 8 digital inputs
• 24 V DC signal level
• Compact format for dense applications
• Status LEDs per channel
• Simple terminal block wiring

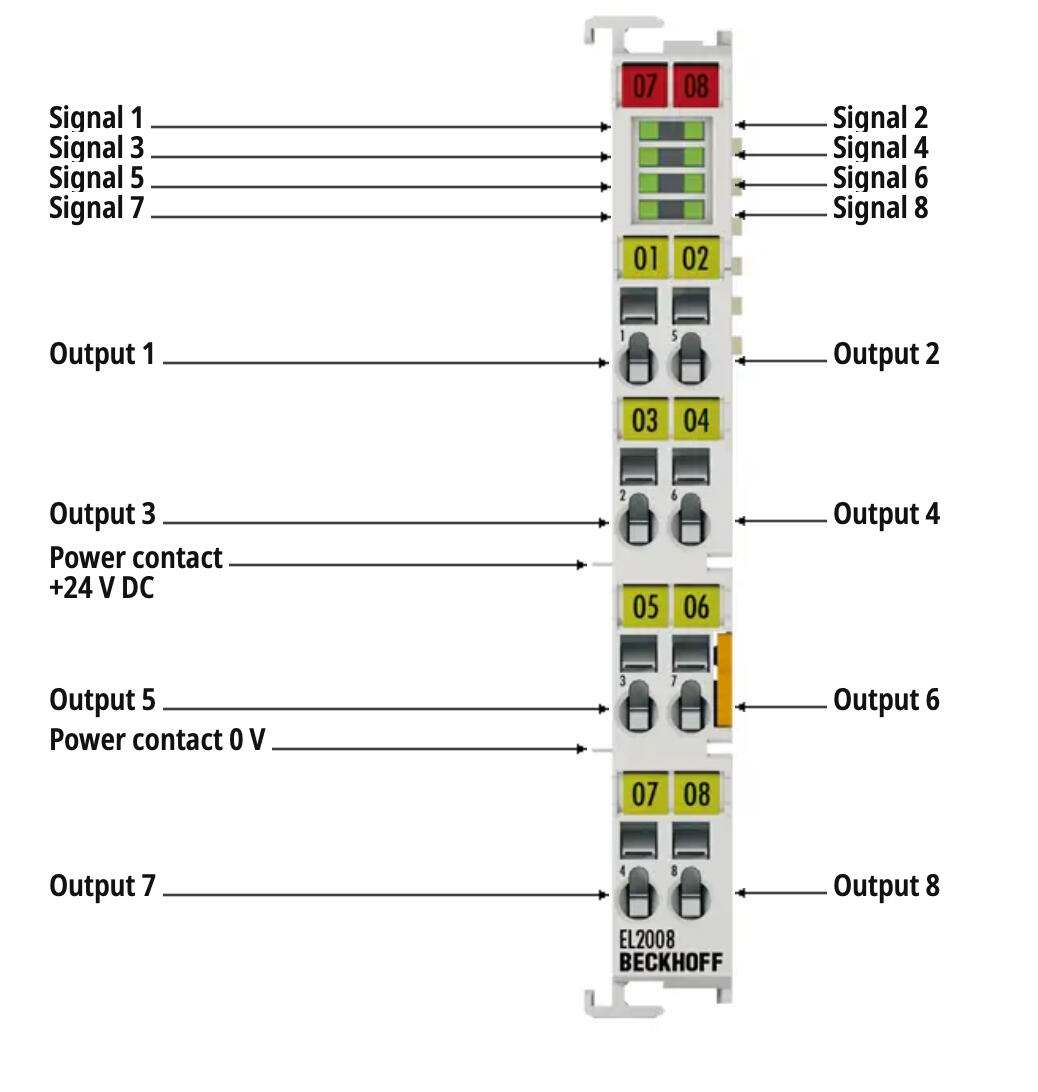

Beckhoff EL2008

The EL2008 provides 8 digital outputs at 24 V DC. Designed to drive actuators like relays, lamps, or solenoids, it features current sourcing and built-in short-circuit protection. Each output is monitored via LED for streamlined diagnostics.Features:
• 8 digital outputs
• 24 V DC sourcing
• Integrated short-circuit protection
• LED status indicators
• Ideal for discrete control systems

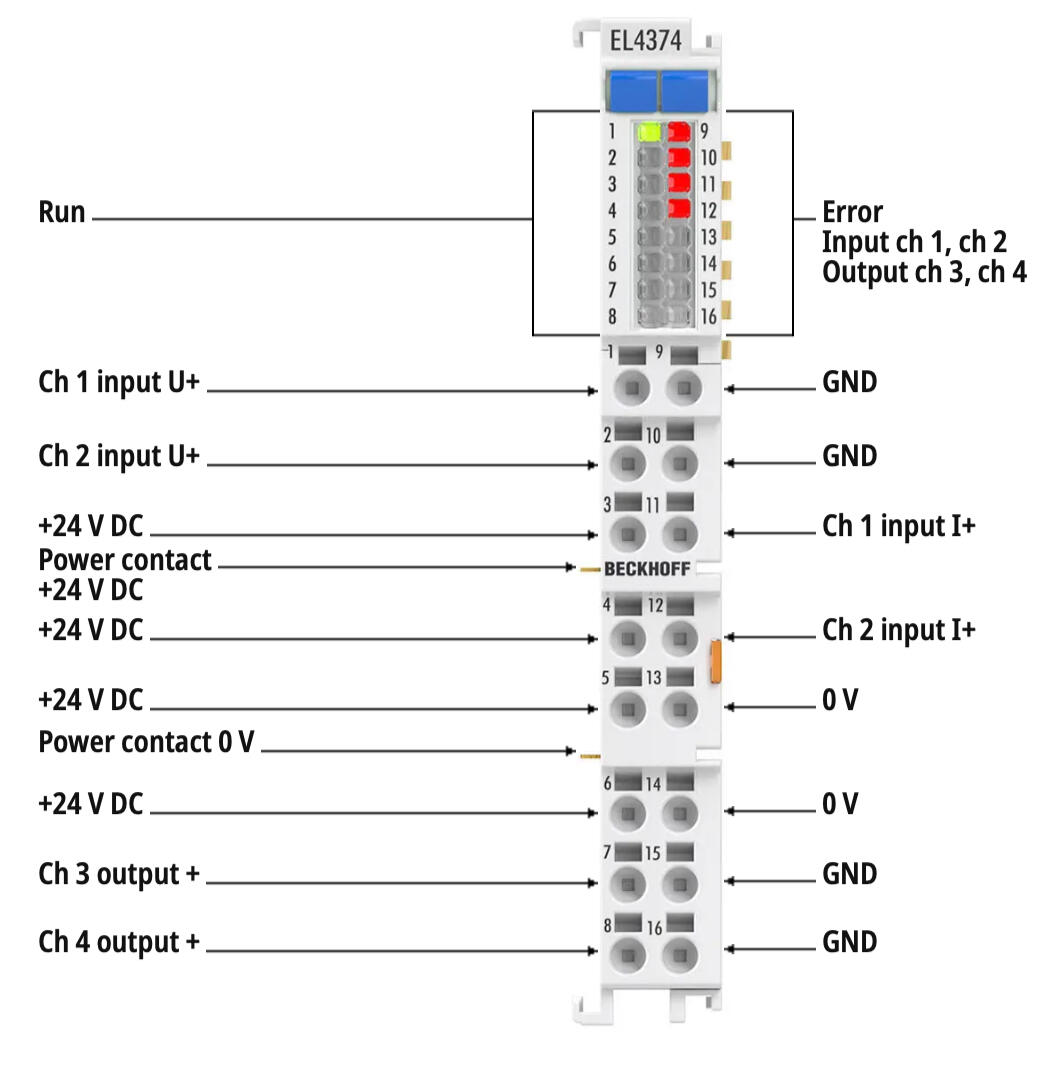

Beckhoff EL4374

The EL4374 combines two high-resolution analog inputs and two analog outputs into a single compact EtherCAT slice. Supporting ±10 V and 4-20 mA signal ranges, it’s ideal for precise interfacing with sensors, actuators, transducers, and control loops.Features:
• 2 analog inputs
• 2 analog outputs
• 16-bit resolution
• Configurable range
• Electrical isolation
• Fast and accurate signal processing
• -10/0 to +10 V or -20/0/+4 to +20 mA.

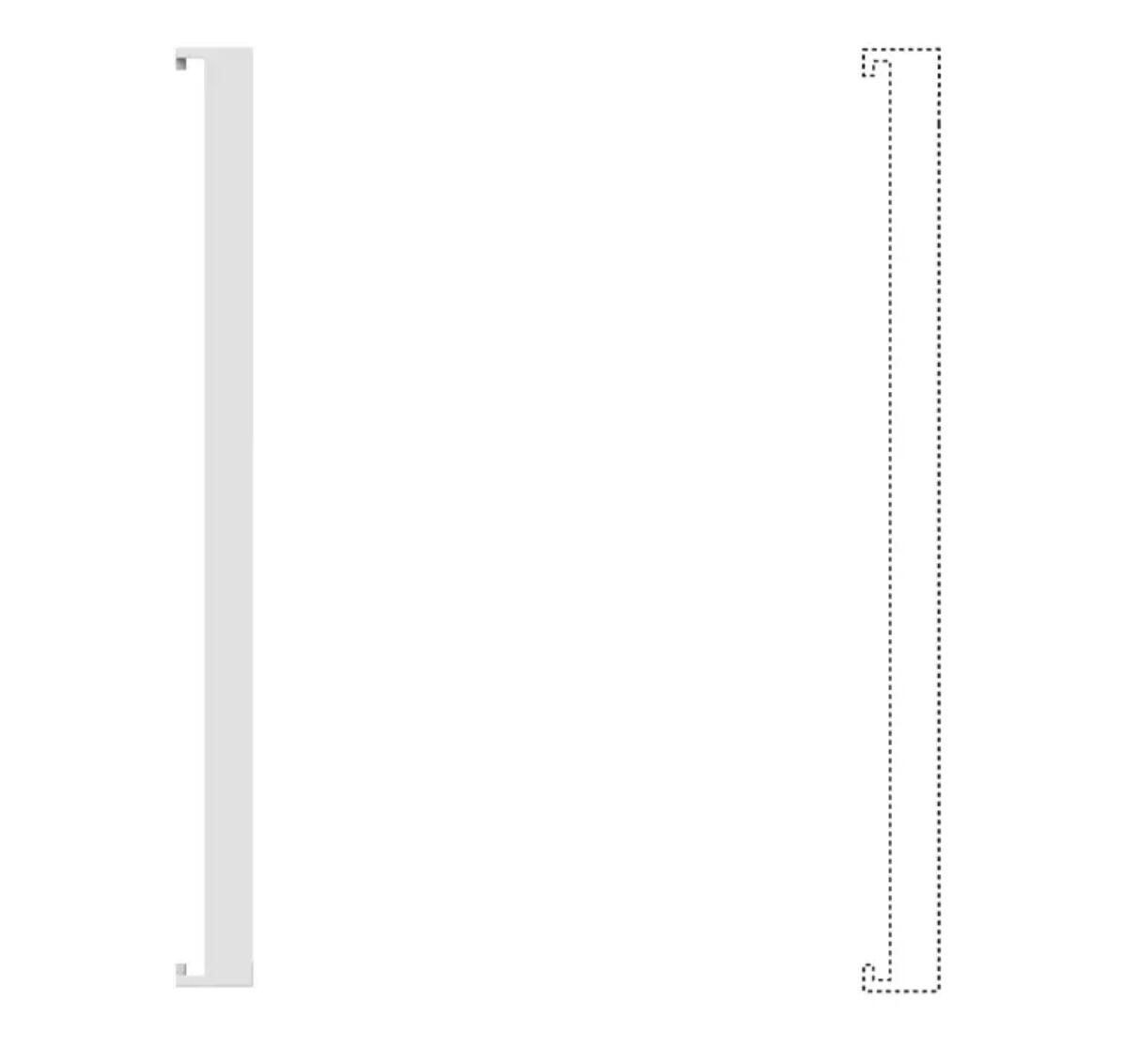

Beckhoff EL9011

EtherCAT Bus End Cap
A required termination module for any Beckhoff EtherCAT I/O stack. Ensures stable communication and proper system behavior.
• Terminates I/O chain
• Required for EtherCAT operation
• Compact, passive component⚠️ Not sold individually. Be sure to include one if you’re building your own system from parts.
